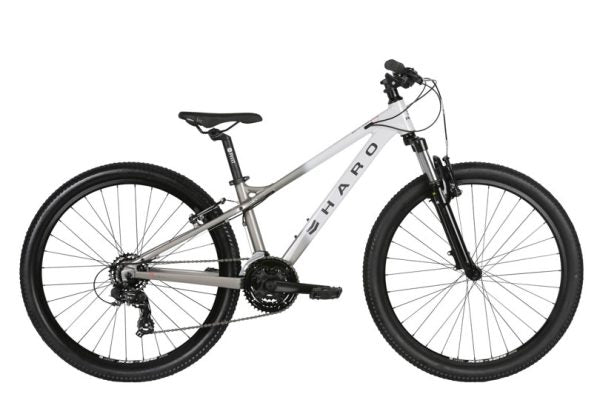

Haro Flightline One 27.5" Mountain Bike - Gray Fade

Haro Flightline One 27.5" Mountain Bike - Gray Fade

Regular price $539.00
Regular price $639.00 Sale price $539.00
Sale Sold out
Size

The 2021 Flightline One 27.5 model features a brand new X6 series alloy frame design with internal cable routing and an HL suspension fork with 80mm of travel to smooth out all the bumps. The FL One 27.5 model features alloy double-wall rims fitted with a Shimano cassette rear hub, and 2.2″ wide tires with a multi-surface tread pattern. For 2021, we have switched to 27.5″ wheels as the main wheel size on the FL One models. Following an undeniable trend towards taller and faster rolling wheels than the 26″ size, The FL One 27.5 platform is ideally suited for all-around riding and an introduction to fire-roads and easy MTB trails.

SPECIFICATIONS
FRAMESET
FRAME NEW MY21 HARO FLIGHTLINE FL4G 6000 SERIES ALUMINUM | FOR 27.5″ WHEELS | INTERNAL CABLE ROUTING
FORK HL CH-389 | 27.5″ 80MM TRAVEL
FRAME SHOCK N/A
COLORS Matte Black / Metallic Blue, Grey Fade
DRIVETRAIN
CRANKS Samox SAC26 Aluminum 42/34/24T | 170/175mm
PEDALS Nylon body, Chromoly axles, Platform
CHAIN KMC Z7 | 7-spd | 1/2″*3/32″
BOTTOM BRACKET Sealed cartridge
FRONT DERAILLEUR Shimano Tourney TY-500
REAR DERAILLEUR Shimano Tourney TY-300
DERAILLEUR SHIFTER Shimano EF-41 3×7-spd
FREEWHEEL/CASSETTE Shimano CS-HG200 7-spd cassette 12-32T
WHEELS
TIRES H-5129 | 27.5 x 2.2″
WHEELS/RIMS XD-180 aluminum double wall
HUBS Pivit alloy front hub | Shimano TY-500 cassette rear hub | 32h
BRAKING SYSTEM
BRAKES Promax TX-121 V-Brakes
BRAKE LEVERS Shimano EF-41
OTHER COMPONENTS
GRIPS/TAPE Haro MTB Kraton
HANDLEBAR Pivit aluminum 25mm riser bar 31.8mm
STEM Pivit melt forged, 31.8mm
HEADSET 1-1/8″ threadless Internal | loose ball | alloy 10mm top cone
SADDLE Haro Flightline
SEAT POST Pivit alloy micro adjust 30.9x350mm
SEAT CLAMP Pivit alloy 34.9mm quick release
Frame reference chart
GEOMETRY & SIZING
SIZE XS S M L
A. SEAT TUBE (C-T) 356mm (14″) 406mm (16″) 457mm (18″) 508mm (20″)
B. TOP TUBE (EFFECTIVE) 566mm (22.3″) 592mm (23.3″) 622mm (24.5″) 633mm (24.9″)
C. HEAD TUBE ANGLE 68° 68° 68° 68°
D. SEAT TUBE ANGLE 72.5° 72.5° 72.5° 72.5°
E. CHAINSTAY LENGTH 432mm (17″) 432mm (17″) 432mm (17″) 432mm (17″)
F. BB DROP 45mm (1.8″) 45mm (1.8″) 45mm (1.8″) 45mm (1.8″)
G. WHEELBASE 1064mm (41.9″) 1090mm (42.9″) 1114mm (43.9″) 1133mm (44.6″)
H. HEAD TUBE LENGTH 100mm (3.9″) 100mm (3.9″) 110mm (4.3″) 120mm (4.7″)
I. STANDOVER 667mm (26.3″) 684mm (26.9″) 726mm (28.6″) 750mm (29.5″)
J. STACK HEIGHT 580mm (22.8″) 580mm (22.8″) 589mm (23.2″) 598mm (23.5″)
K. REACH 383mm (15.1″) 409mm (16.1″) 429mm (16.9″) 444mm (17.5″)
L. FORK HEIGHT mm (“) mm (“) mm (“) mm (“)
M. FORK OFFSET 33mm (1.3″) 33mm (1.3″) 33mm (1.3″) 33mm (1.3″)
N. STEM LENGTH 60mm 60mm 60mm 70mm
O. BAR WIDTH mm mm mm mm
P. CRANK LENGTH mm mm mm mm
