Haro Double Peak I/O Mountain EBike - Large Frame - ONE ONLY
Haro Double Peak I/O Mountain EBike - Large Frame - ONE ONLY
Regular price
$3,699.00
Regular price
$4,999.00
Sale price
$3,699.00
Unit price
/
per
The Double Peak I/O and its slick frame design features an internal battery down-tube and motor-mount for a clean, integrated look. Other features include Shimano's new Deore 10-speed 1-by drive-train with a Shimano STePS 6100 compact mid-motor drive and its components, programmed for on-road and light off-road trail use.If you ride trails and also commute to work or town for shopping, you have found your match.
Features
- Double Peak i/O X6 series frame, internal battery, tapered head tube
- Suntour XCM-34 Boost fork, 100mm travel w/ 15mm thru-axle

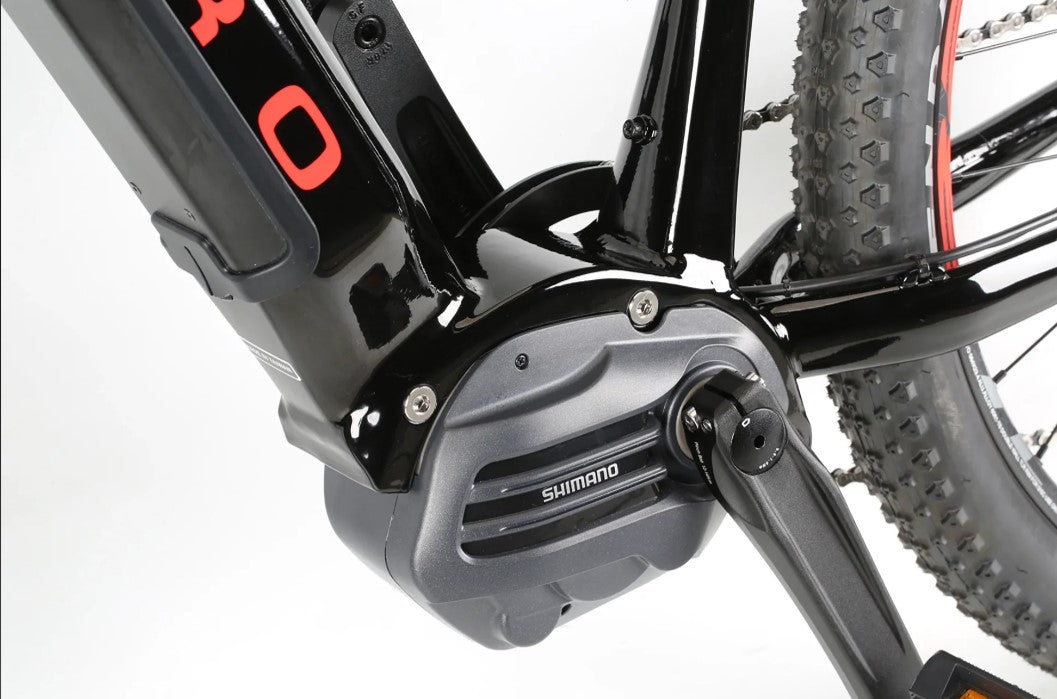

- Shimano STePS E6100 Drive unit & components
- 250 Watts, 60Nm motor w/ Darfon internal 504wh battery
- New Deore M5120 10-spd Shadow Plus rear derailleur
- New Deore M4100 10-spd 11-46T cassette
- Samox crankarms w/ Shimano 38T chainring
- Shimano MT-201 hydraulic disc brakes, 180mm/160mm rotors
- Sturdy chainstay-mounted kickstand
FRAMESET | |
---|---|
Frame | Double Peak I/O X6 Aluminum frame for Shimano STePS Tapered Head Tube | Internal battery Down Tube |
Fork | SR Suntour XCM34 Boost LO DS T/A | 100mm travel | Tapered | Lockout |
Colors | Black / Neon Red |
DRIVETRAIN | |
Cranks | Samox TEC39-SHE80 | Shimano 38T Chainring |
Pedals | FPD Nylon | 9/16" Chromoly axles |
Chain | KMC e10S Sport |
Bottom Bracket | |
Front Derailleur | |
Rear Derailleur | New Shimano Deore RD-M5120 | 10-spd | Shadow Plus |
Derailleur Shifter | New Shimano Deore SL-M4100-R 10-spd |
Freewheel/Cassette | New Shimano Deore CS-M4100-10 | 10-spd | 11-46T |
Drive Unit | Shimano STePS E6100 | 250 W. | 60 Nm Torque |
Battery | Darfon Internal for ShimanoSTePS | 504Wh |
WHEELS | |
Tires | Kenda Honey Badger | 27.5x2.20 | 60tpi |
Wheels/Rims | Weinmann U-28 TL | Sleeved | Tubeless Ready | 27.5"x32mm | Double Wall w/ eyelets |
Hubs | Shimano MT-400 Front Thru-Axle | M-4050 Rear Quick Release | 32h | Cassette Body |
BRAKING SYSTEM | |
Brakes | Shimano BR-MT200 Hydraulic Disc | 180mm / 160mm Center Lock Rotors |
Brake Levers | Shimano BL-MT201 Hydraulic |
OTHER COMPONENTS | |
Grips/Tape | WTB Weirwolf |
Handlebar | Alloy riser bar | 25mm Rise |
Stem | 3D Forged alloy |
Headset | FPD Dozer 1-1/8"-1.5" | AC Bearing bottom |
Saddle | WTB Comfort Sport |
Seat Post | Pivit Alloy Microadjust 31.6 x 350mm |
Seat Clamp | Pivit Aluminum 35mm Bolt |
Extras | Chainstay kickstand | Shimano display | Darfon battery charger | Battery Lock |
